RRP
€1787.80 excl. 23% vat. €2199.00 incl. vat.
€70.00 delivery

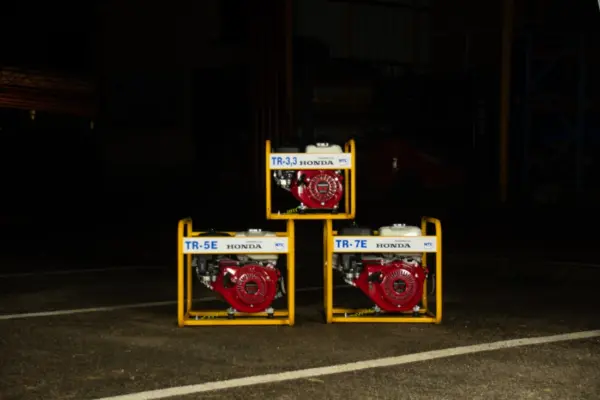

also available TR 3,3 kVA / TR 5E 5.0kVA /TR 6E 6,0 kVA
Frame construction generators serve as a portable source of electrical energy on construction sites, but also on other occasions when the distribution network is not available. Depending on the required power supply, single-phase or three-phase power plants can be selected. Depending on the required quality of voltage regulation, it is possible to choose basic capacitive regulation (suitable for lighting or common power tools) or electronic AVR regulation, which is suitable for powering computers or electronic devices. The series is supplemented by several types of powerful power plants with a welding machine. Optional accessories: Transport wheels Circuit breaker Voltmeter| General Parameters | |
| Generator type | One-Phase |
| Regulation type | Capacitive |
| Technical Specifications | |
| Weight | 75kg |
| Electric power | 7kVA (kW) |
| Voltage | 230V |
| Current | 30.5A |
| Frequency | 50Hz |
| No of ockets | 2 x 230V |
| IP rating | IP 23 |
| Engine | |
| Electric start | No |
| Maker and type | Honda GX390 |
| Fuel | petrol |
| Tank volume | 6.5L |
| Net power | 8.7kW |
| Emission stage | EU Stage V |
| Dimensions | |
| Lenght | 740mm |
| Width | 550mm |
| Height | 520mm |
