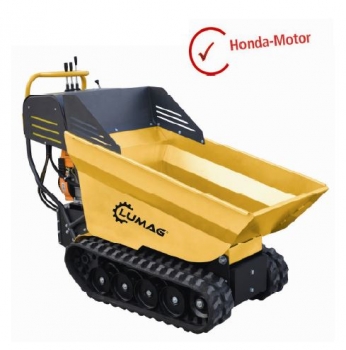

The Lumag VH500 GXA Mini dumper is a fully hydrostatic, robustly made machine, which is manufactured with durability and ease of operation in mind. It is propelled by a top of the range Danfoss hydraulic pump. It is fitted with a Honda GX200 engine.
Price €4.830.00 ex. vat. €5,940.90 incl. 23% vat.
Sale 2024 €4,589.43 excl. 23% vat. €5,645.00 incl. vat.
Delivery €110.00 excl. vat
Lumag VH 500 GXA Mini Dumper specifications:
Technical data:
| Engine: | 1-cylinder gasoline 4-stroke HONDA, OHV |
| Engine capacity: | 196 cm 3 |
| Engine power: | 4.1 kW at 3000 rpm |
| Starting: | reverse starter |
| Fuel: | unleaded gasoline |
| Management: | hydraulic |
| Drive: | Hydrostatic |
| Body dimensions: | length 1000 mm |
| width 700 mm | |
| depth 450 mm | |
| Mass: | 345 kg |
| Maximum load: | 500 kg |
| Bucket lift: | hydraulic |
| Bucket volume: | 0.2 m 3 |
| Hydraulic pump capacity: | 12l / min (at 3000 rpm) |
| Max. Hydraulic pressure: | 200 bar |
| Working speed: | max 2.9 km / h |
| Reverse: | max 2.3 km / h |
| Light height: | 55 mm |
| Track width: | 336 mm |
| Max. possible tilt: | 30 ° |
| Machine dimensions (LxWxH): | 1500x720x1240 mm |
| Transport dimensions (LxWxH): | 1800x600x370 mm |
Properties:
- The fully hydraulic professional mini dumper VH500 GXA is the perfect helper for all
transport applications in various industries. - Fitted with HONDA engine
- Tipping the body with the help of a hydraulic piston.
- It can handle up to 500 kg of cargo.
- Only 72 cm wide allows you to drive on narrow roads and permeability to most doors or gates.
- Solid steel construction ensures long life.
- Equipped with a step.
